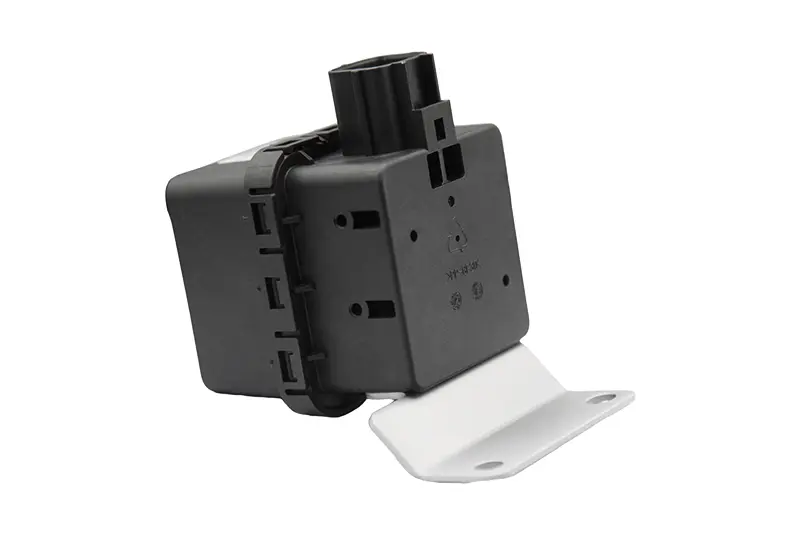

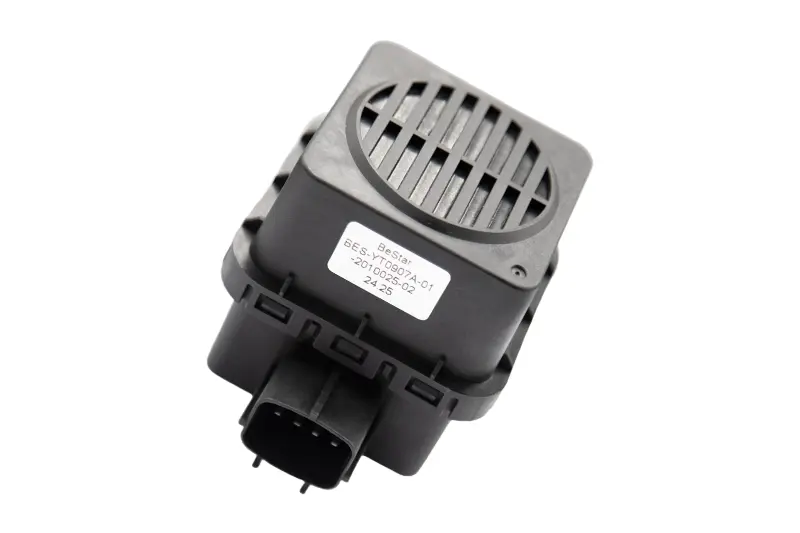

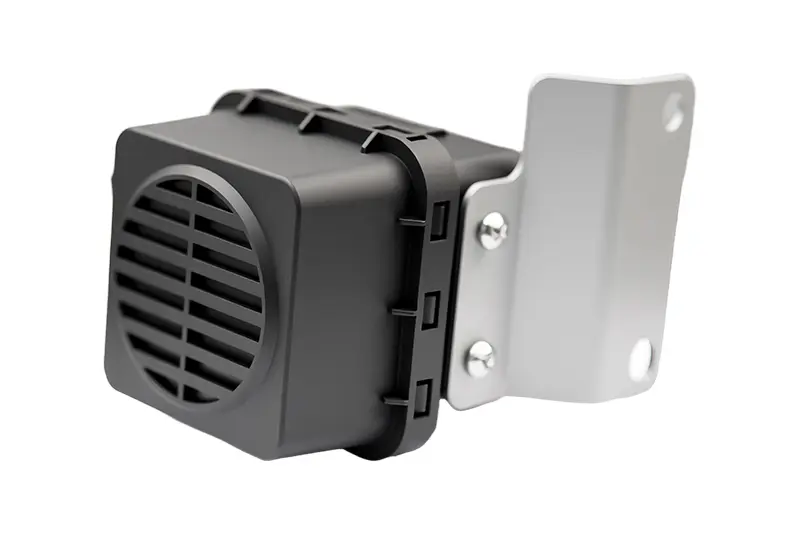

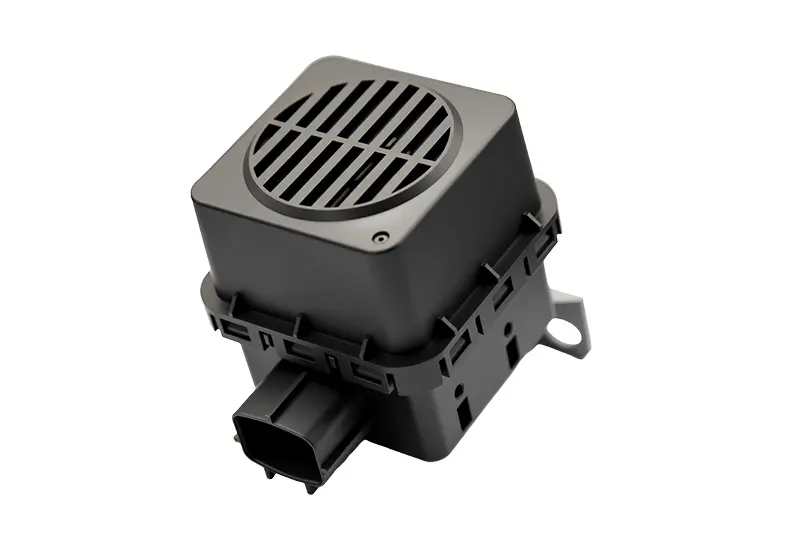

BESTAR Acoustic Vehicle Alerting System AVAS BES-YT0907A-01
| Terminal connection | +13.5VDC,GND,CAN_H,CAN_L |
| Operating Voltage | 9-16VDC |
| Current Consumption | max.1A |
| SPL at driver gear 10km/h(12V/1m) | 64±3dB |
| SPL at driver gear 20km/h(12V/1m) | 68±3dB |
| SPL at reverse gear(12V/1m) | 68±3dB |
| Frequency Shift | ≥0.8%（km/h） |
| Operating Temperature | -40...+85°C |
| Storage Temperature | -40...+90°C |
| Colour | Black |
| IP rating | IP67 |
| Weight | ≤250g |
Features:
● Meets national standards
● Audio source and stand can be customized
● IP67
Description
The Acoustic Vehicle Alerting System (AVAS) BES-YT0907A-01 is a leading edge acoustic safety technology solution that was developed to increase pedestrian awareness of electric and hybrid vehicles. As EVs have extremely low noise emission at low speed, they have potential risk to pedestrians, cyclists and other road users who may not perceive their approach. The BES-YT0907A-01 generates a precise, directional and extremely identifiable warning sound able to fill the gap left by the fact that (electric) drivetrains generate no sound, allowing for safer streets and better mobility environments in cities.
Engineered with high environmental resistance system, it completes to IP67 protection and full dust, rain, road debris, high-pressure water exposure and good resistance of outdoor protection. This scale of protection ensures reliability over time, stable sound output and operations over changing climates. BES-YT0907A-01 is designed to meet China's national AVAS standards (GB/T 37153) to ensure that its frequency range, sound pressure level and noise characteristics are in full accord with the regulatory standards of electric vehicles that move on low speed.
The system is compact, light and has very high durability ensuring seamless integration to various platforms such as electric vehicles, low-speed neighborhood vehicles, e-bikes, delivery robots, and small autonomous mobility equipment. Its installation process is easy because of its flexible mechanical structure, and users can further customize the process according to the structure of the vehicle.
To meet varying demands of OEMs, the sound source (speaker characteristics, timbre, tone patterns) and mounting brackets are fully customizable. This flexibility allows accurate acoustic tuning to accommodate brand identity, compliance to regulation and user experience expectations. With its powerful sound output, long operating life and low power usage, the BES-YT0907A-01 is a reliable, environmentally-friendly, and future-ready AVAS solution.
Combining together safety, durability, customisation and compliance, the BES-YT0907A-01 gives the manufacturers of electric mobility a reliable warning system designed for the new face of electric mobility.
