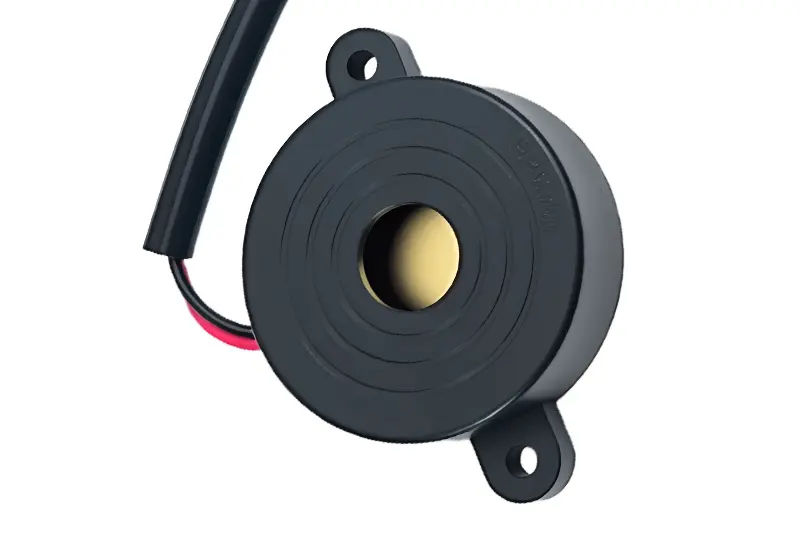

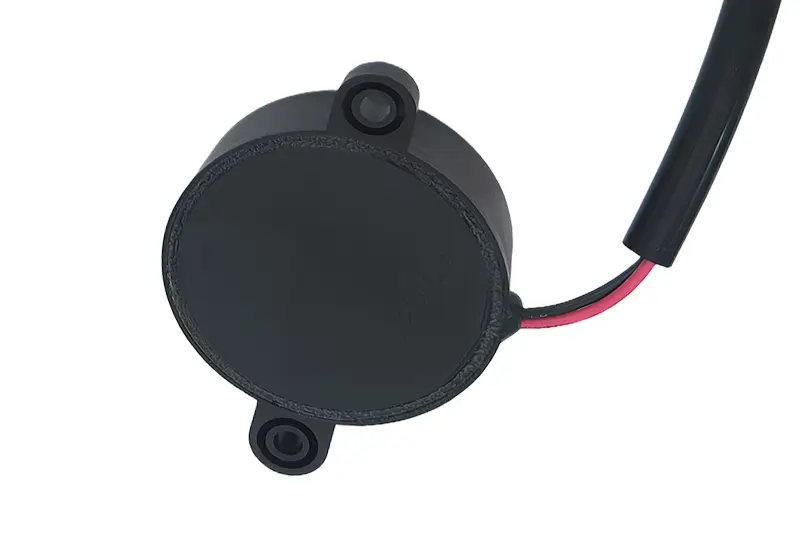

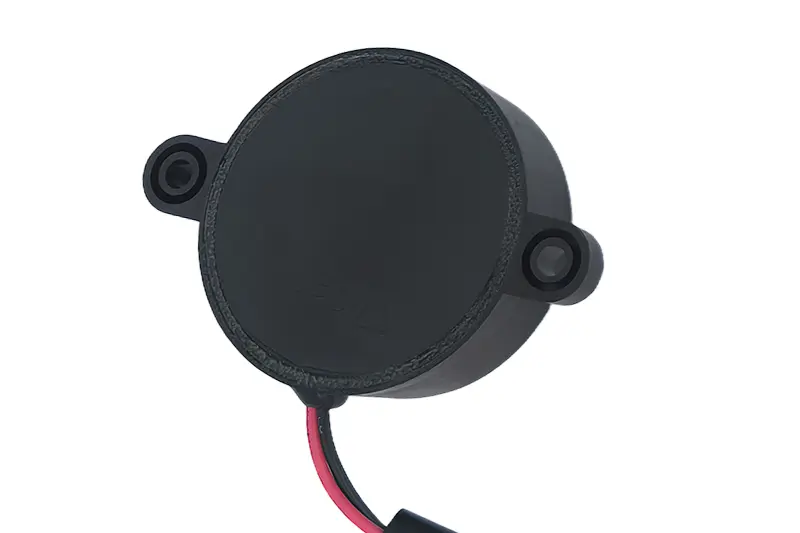

BESTAR Active Piezo Buzzer for Automotive Electronics BPT4012XH16W220
| 1. Rated Voltage | 12VDC |
| 2. Operating Voltage | 3...30VDC |
| 3. a)Rated Current | ≤30mA |
| 4. a)Sound Outputat 10cm | min.95dB |
| 5. Resonant Frequency | 3100±500Hz |
| 6. Operating Temperature | -40...+85℃ |
| 7. Storage Temperature | -40...+90℃ |
| 8. a)Value applying at rated voltage(DC). | |
Features:
● High sound pressure
● RoHS
Description
BP4012XH16W220 is a high-performance Piezo Buzzer, which is developed specifically to be used in the Automotive Electronics offers audible and powerful sound outputs which can be used as alert and warning systems in the automotive industry. It uses a 12 volt to operate and is optimally tuned to operate stable at high sound pressure level at 12 volts and therefore fits in the places where it is highly needed in terms of reliable and pentrating audible warning alerts. It has a compact and strong construction with great resistance to vibration, change of temperature and humidity thus long-term success studying is promising in highly automated climate conditions. The BPT4012XH16W220 Active Piezo Buzzer, with its strong construction and sound attributes, will best be used to deliver on automobiles that will require reliably good volume of sales of the product as an alert sound unit by its dashboard, safety features and other forms of vehicle electronics.
