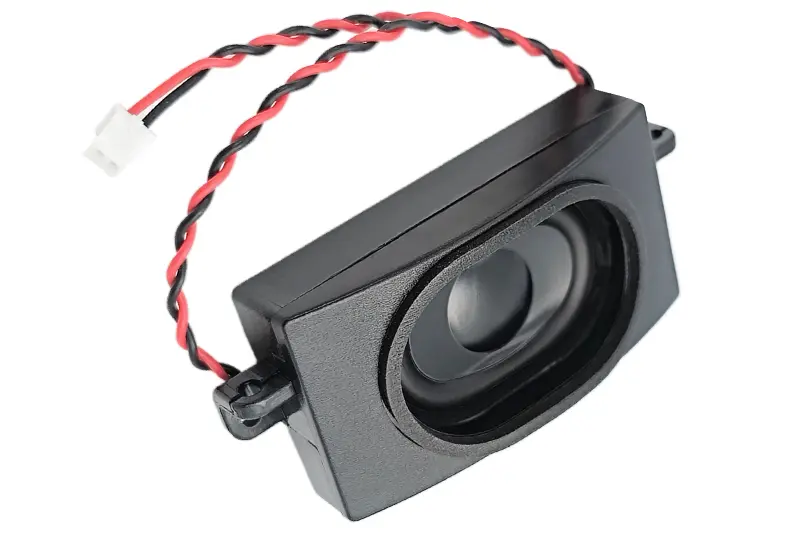

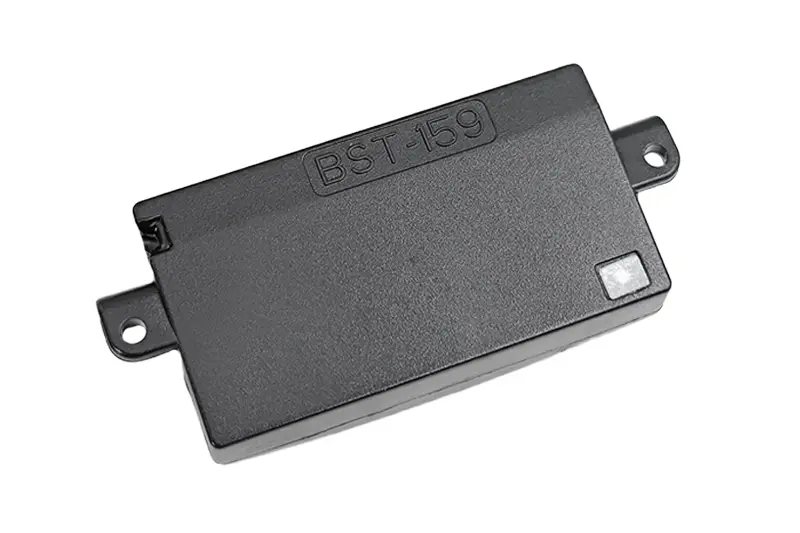

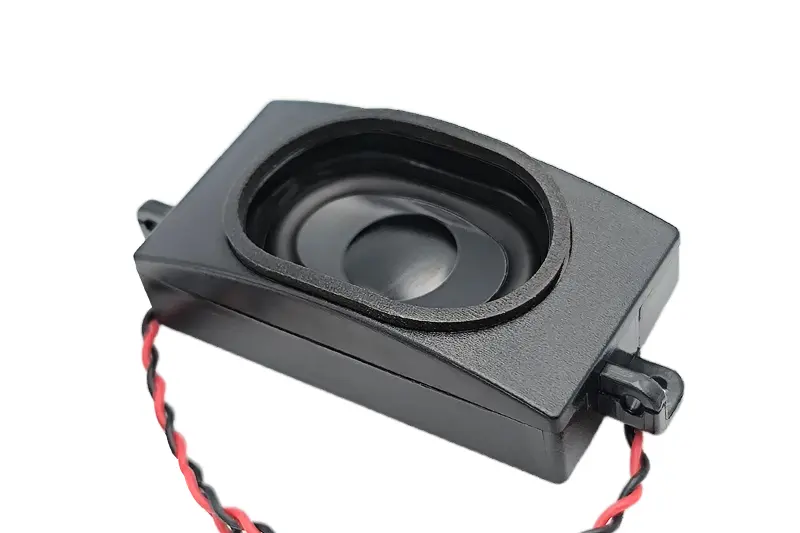

BESTAR Front-Firing Speaker Module BBS159-08H16-03

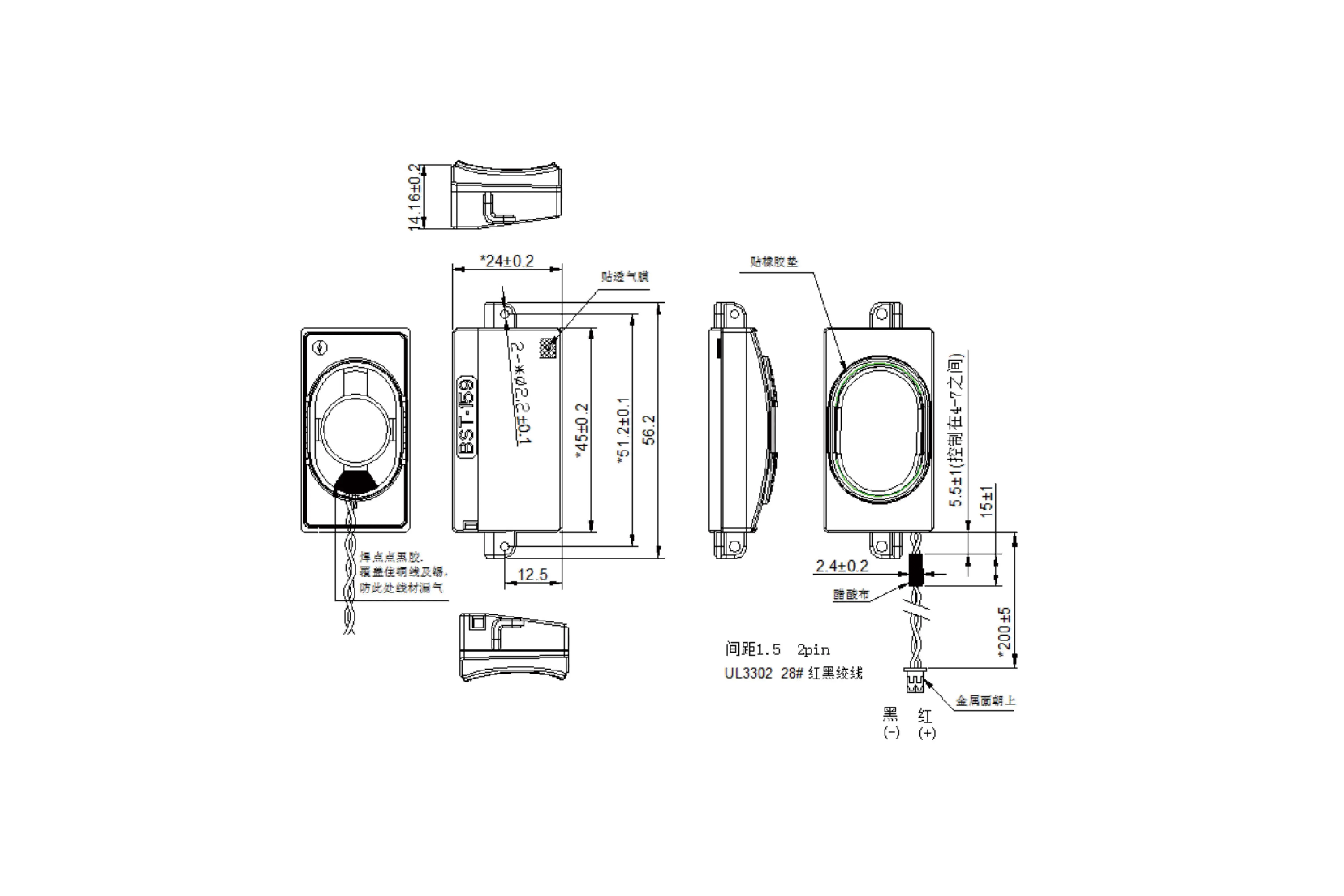

| Dimensions | 24*45*14.16 (mm) |
| AC Impedance | 8Ω±15% (at 2K Hz/1Vrms) |
| Rated Input Power | 1.5W |
| Maximum Input Power | 1.8W |
| Resonant Frequency | 850Hz ±20% |

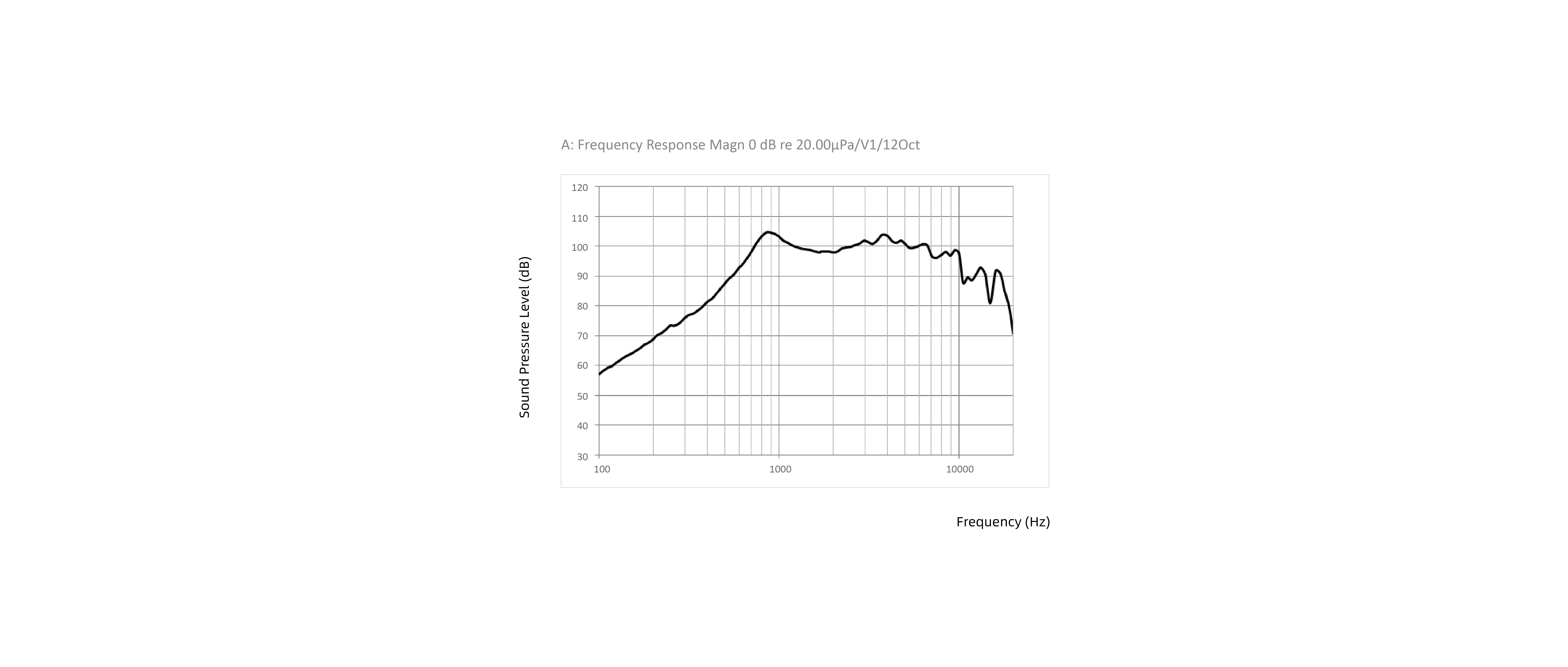

| Frequency Response | F0~20K Hz |
| Sound Pressure | 98±3dB/0.1m/1.5W at 2K Hz |
| Distortion | ≤10% (at 1.0K Hz/1.5W) |
| Pure Tone | Must be normal at sine wave 3.45Vrms from 200~3400Hz |
| Polarity | Positive voltage to (+), Diaphragm moves forward |
| Operating Temperature | -30~+70°C |
| Storage Temperature | -30~+70°C |
| Weight | ~9g±0.3g |
| Waterproof Rating | IP67 |
Features:
● Large quantity and easy to use
The BBS159-08H16-03 Speaker Module is a small, strongthened action-packed speaker intended with a high degree of smartness and numerous consumer electronics and smart devices. It presents consistent acoustic performance and easy to use modular construction with yet, overall better acoustics that provide a better experience to the listener. It particularly complements smart cameras and voice interaction systems among other intelligent products that require clear voice delivery and the dependability of sound delivery.
Being designed with the flexibility and scalability adequate, the BBS159-08H16-03 easily fits numerous applications, which is why the product is suitable to be used in high-production volume and incorporated easily into various products models. The refined design ensures a steady sound quality and the effective design of power ensures minimized power consumption without compromising the output performance.
