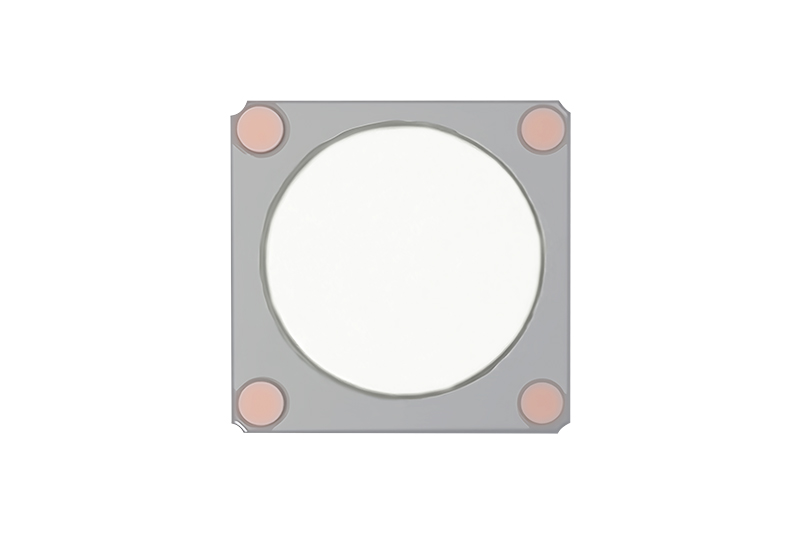

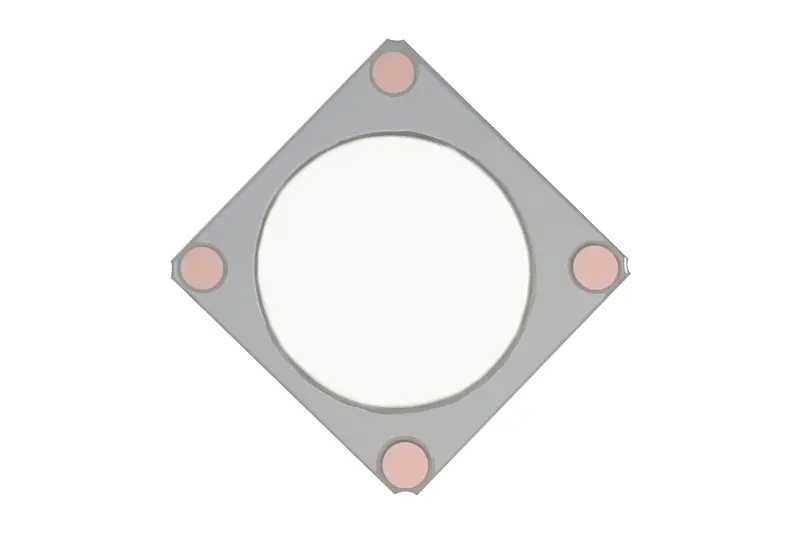

BESTAR Miniature Metal Liquid Pump for Consumer Electronics MMP07
| Pump type | Piezoelectric Diaphragm Pump |

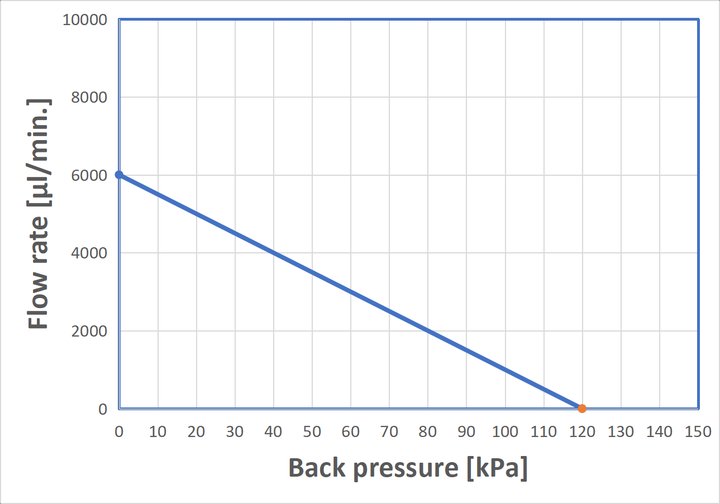

| Maximum flow rate | 3.5ml/min(Min.) 6.0ml/min(Typ.) |
| @ F=300Hz, Back pressure P=0kPa | |
| Pump pressure | 120 kPa(Typ.) |
| Drive voltage | 180Vpp (±90V Sine wave) |
| Drive frequency | 1~350Hz |
| Power consumption | 10mW(Typ.) |
| Power consumption | 40mW(Typ.) |
| (Connection Driver) | |
| Capacitance at 120Hz | 5.5±30%nF |
| Storage temperature | -40~+85°C |
| Weight | 0.15g |
| Pumping media | Liquids |
| Housing Material | SUS 3 Series |
| Noise level | ≤26dB （30cm） |
Features:
● Large Flow
● Small size
● Easy to install
Description
MMP07 Miniature Metal Liquid Pump is a high-performance microfluidic component, designed to be used in the reliable liquid transfer and cooling. Equipped with long lasting metal utmost housing. It is able to easily fit in systems that have very limited space in space, besides providing stable fluid flow and uniform performance associated with miniaturization.
The main benefit of the MMP07 liquid pump is that it is efficient in the liquid circulation on micro-scales. It has a low power consumption thus saving energy and generating low heat which is important in the sensitive electronic equipment. The strong design of the pump is not subject to wear and produces excellent vibration and environmental stress. This guarantees a reliable operation even in the high-duty or constant use.
MMP07 can be applied in piezoelectric cooling system. Its liquid transfer is also smooth resulting in less noise and less turbulence ensuring consistent system operation and safety of delicate components.
The MMP07 Miniature Metal Liquid Pump is the best solution in situations where high-reliability is needed in a such small body size. Be it cooling, fluid delivery or any particular circulation system, it offers a good reliable remedy to raising liquid management in modern technology to address the ever-needed upward pressure with respect to efficient delivery of water.
