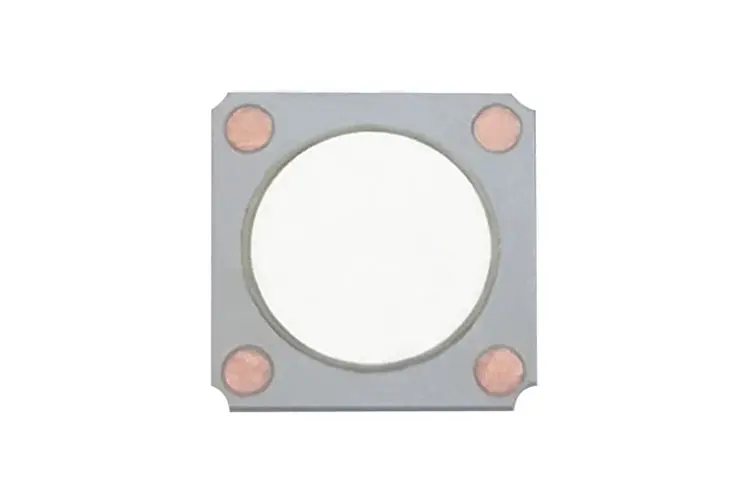

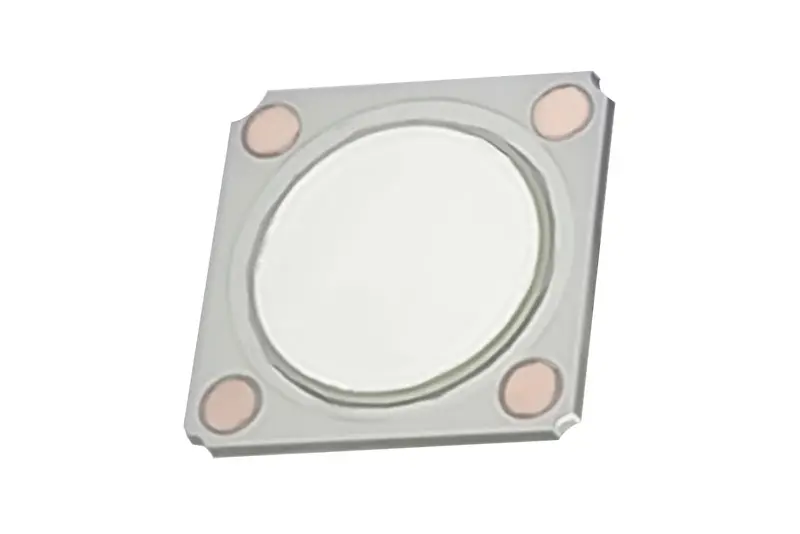

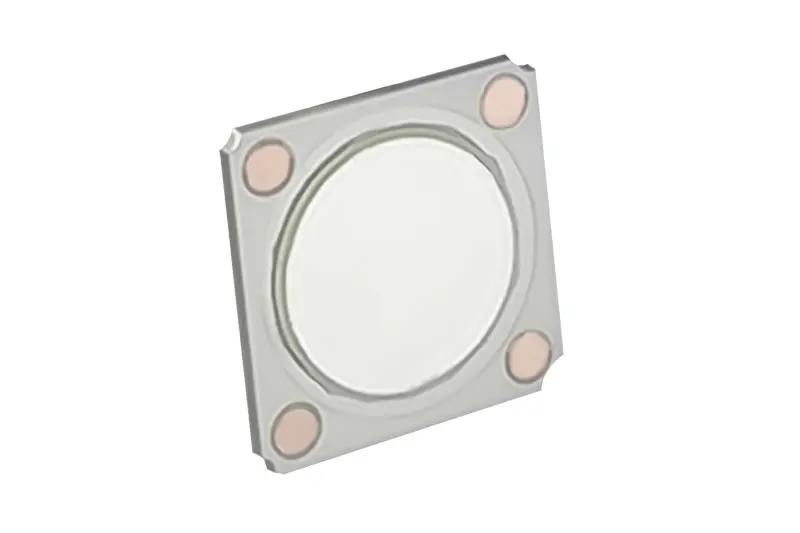

BESTAR Miniature Metal Liquid Pump for Consumer Electronics MMP10
| Pump type | Piezoelectric Diaphragm Pump |

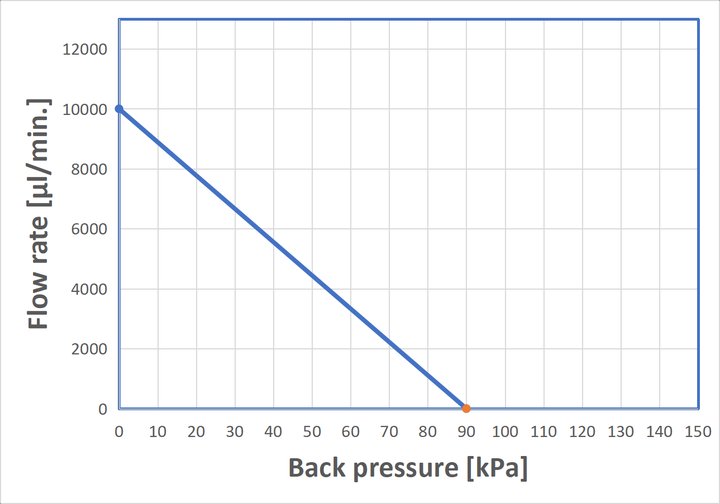

| Maximum flow rate | 10ml/min(Min.) 12ml/min(Typ.) |
| @ F=300Hz, Back pressure P=0kPa | |
| Pump pressure | 90 kPa(Typ.) |
| Drive voltage | 180Vpp (±90V Sine wave) |
| Drive frequency | 1~350Hz |
| Power consumption | 15mW(Typ.) |
| Power consumption | 60mW(Typ.) |
| (Connection Driver) | |
| Capacitance at 120Hz | 13±30%nF |
| Storage temperature | -40~+85°C |
| Weight | 0.32g |
| Pumping media | Liquids |
| Housing Material | SUS 3 Series |
| Noise level | ≤26dB （30cm） |
Features:
● Large Flow
● Small size
● Easy to install
Description
With a specific focus on piezoelectric pumping applications as used by OEMs to integrate into liquid cooling modules of modern consumer electronics, our compact liquid pump is specifically developed and designed. Engineered to the stringent demands of laptops, tablets, and other high-performance computing systems.
Miniature Metal Liquid Pump MMP10 has a highly-designed a structure. The size and weight are small so it is appropriate in space-restricted electronic situation where one millimeter makes a big difference whereas its sophisticated Piezoelectric Diaphragm Pump technology offers preciseness and performance at fluid motion. With this combination, the thermal management is possible with high performance capabilities so as to keep consumer electronics devices within safe operating temperatures.
The piezoelectric drive of the pump reduces the needle vibration and noise resulting to an ideal use in such areas that sound vibration is considered crucial. There are no rotating parts on which to wear, so there is very little wear and tear which increases the operating life, and decreases maintenance needs. Also, the good design translates to general energy salutation which is of particular value to portable devices operating on battery.
Designed to work with liquid cooling modules in consumer electronics, it enables the transferring of heat away and cooling the most critical of components by passing coolant through a microchannel or heat exchangers. This does not only improve device performance but also avoids the costly high surface heat which could lead to discomfort of the users.
Our Miniature Metal Liquid Pump MMP10 is a highly repeatable and reliable cooling solution. Its Piezoelectric Diaphragm Pump ensures that it has control of fluid movement in an accurate way, making the next generation devices to have the ability to be cooler, quieter, and highly efficient in the current market of performance intensive devices.
