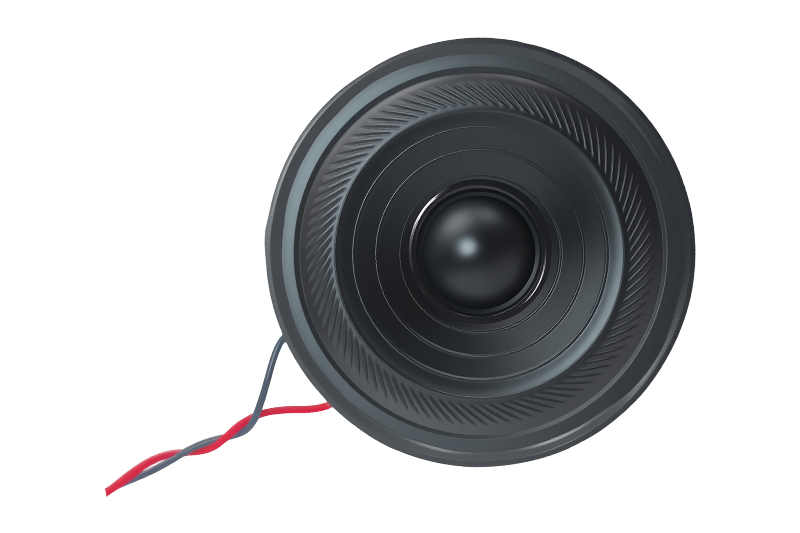

BESTAR High Sound Pressure PET Diaphragm Speaker BLS64-11B-08H19.4W105J-02
| Impedance 1.0kHz | 8±15% Ω |
| Resonant Frequency | 300±20% Hz |
| Operating Frequency Range | F0...10K Hz |
| Rated Input Power | 2W |
| Maximum Input Power | 3W |
| Pure Tone (4V Sine Wave) | Must be Normal |
| Sound Pressure (1W/1M) | 80±3dB at 1000 Hz |
| Distortion (1W/1000Hz) | MAX 5% |
| Polarity | Positive voltage to (+), the diaphragm move forward |
| Operating Temperature | -40...+85°C |
| Storage Temperature | -40...+85°C |
Features:
● High sound pressure level
● Wide frequency range
Description
The BLS64-11B-08H19.4W105J-02 is a solid PET diaphragm speaker that will provide powerful audio performance over a broad frequency range. Its stable diaphragm material ensures consistency in its acoustic behaviour even under changing conditions in terms of temperature and humidity.
Engineered for wide frequency response, the BLS64-11B-08H19.4W105J-02 reproduces full range of audio levels well-balanced to contents-unique high frequency descriptions to well-defined mid-tones suitable for voice-driven programs, tonal warnings and multimedia audio programs. The optimized magnetic circuit provides better acoustic sensitivity and better transient response to ensure that even at higher output level the distortion is minimum.
Its durable structure and overall balanced design make the BLS64-11B-08H19.4W105J-02 suitable for products required to perform daily. Whether asintegrated into communication equipment, smart panels, industrial control automatic controllers, medical equipment, or handheld electronics, this speaker retains its ability to be clear and stable in a variety of usage environments.
As a professional speaker manufacturer, we ensure that we follow rigorous quality control during each product's production. Every unit is tested for its output in terms of accuracy, frequency stability, and long term survivability in order to meet the demands of modern electronic designers.
For projects where a high SPL with a wide range of acoustic coverage is needed with a PET diaphragm speaker, the BLS64-11B-08H19.4W105J-02 is a reliable performance-driven solution. Its high powerful output and wide bandwidth make it a versatile audio component for demanding and space-constrained applications.
