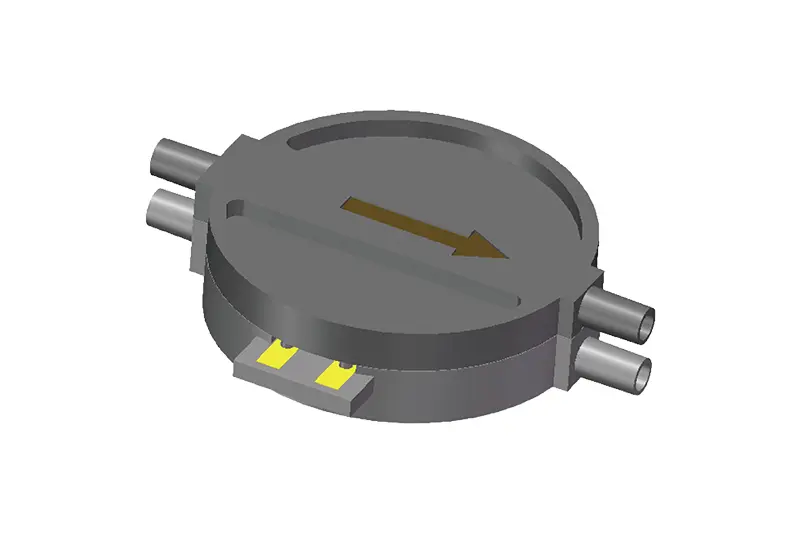

BESTAR Piezoelectric Miniature Air Pump MAP-30
| (Length + Tolerance) * (Width + Tolerance) | (32.6 ± 0.2 mm) *(29.6 ± 0.2 mm) |
| Thickness + Tolerance | 8.5 ± 0.15 mm |
| Drive Voltage | 40-50 Vpp |
| Drive Waveform | Square wave, 50% duty cycle, no offset |
| Drive Frequency | 20-30 kHz |
| Pump Operating Temperature | 0-45°C, recommended case temperature ≤ 45°C |
| Free Flow Rate (0 kPa) @ 1.2 W | ≥1000 mL/min (series connection) |
| Static Pressure (0 ml/min) @ 1.2 W | ≥45 kPa (series connection) |
| Power Consumption | 0.3-1.2 W |
Features:
● Excellent pressure and flow performance
● Quiet
● Vibration-free operation
● Ultra-fast millisecond response
● Lightweight and compact
● High-precision controllability
Description
Piezoelectric Miniature Air Pumps have innovative micro air pump technologies offering accurate, efficient and noiseless pneumatics to control the contemporary devices and systems. These air pumps are of superior pressure and flow performance with very high compactness and lightness made through innovative piezoelectric actuation technology. They are silent, vibration-free, and can be used in settings that are sensitive to noise like in medical equipment, analytical tools and handheld electronics.
The air pumps provide response times in milliseconds, providing you with real time control of airflow and pressure, which is useful when using a high response time and accurate and repeatable pneumatic adjustments. They are very precise and stable thereby being able to operate reliably even in case of continuous or high-frequency use which improves the efficiency and performance of the entire system.
All the air pumps are designed to be durable and energy efficient which have a very long life and also consume less power. It is small in size and can easily fit into small system designs without compromising on its functionality.
