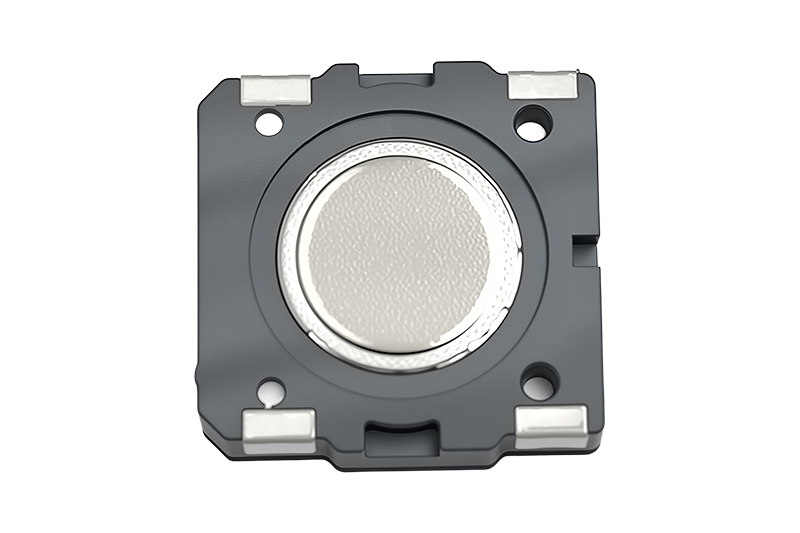

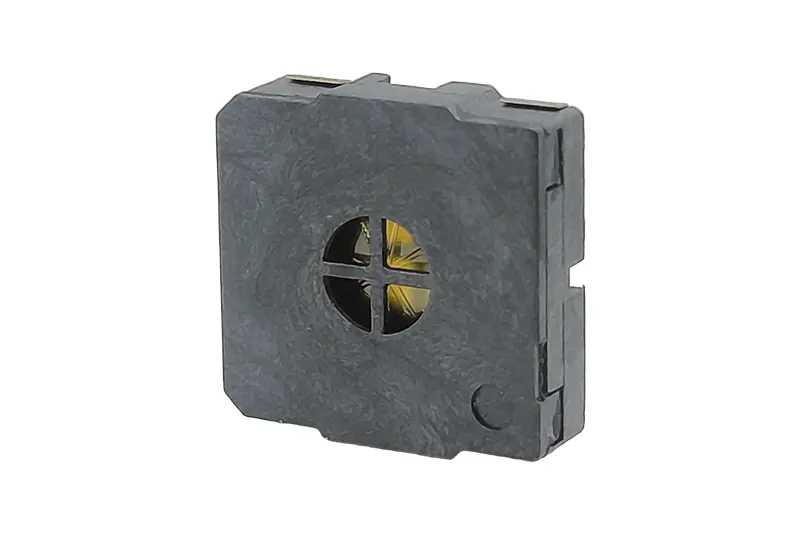

BESTAR Ultra-Thin SMD Speaker SMS1515-08H04 LF

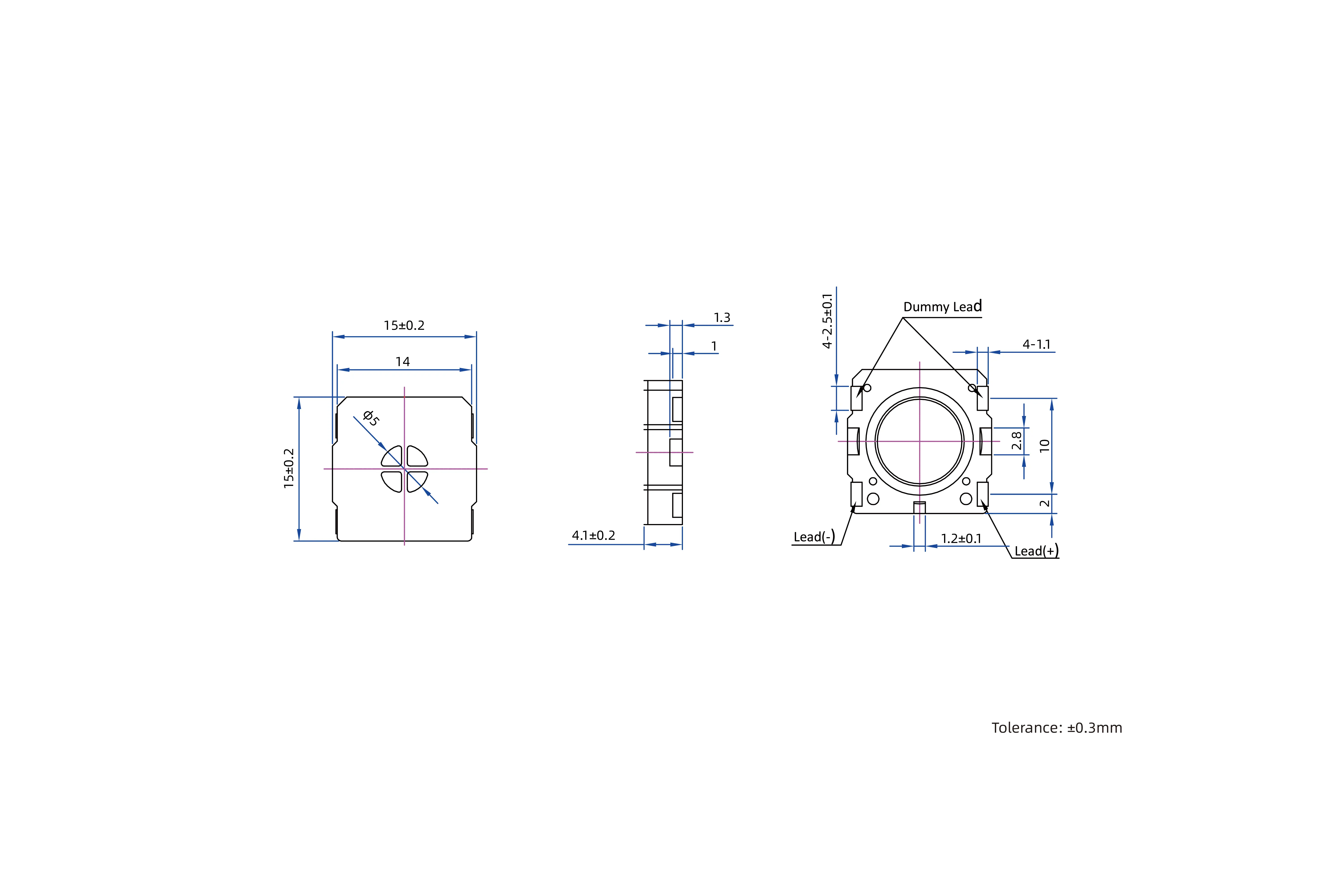

| Dimensions | 15*15*4.1 (mm) |
| Impedance 2kHz | 8±20%Ω |
| Minimum Resonant Frequency | 800±15%Hz |
| Rated Input Power | 0.5W (2Vrms) |
| Maximum Input Power | 0.8W (2.53Vrms) |
| Frequency Response | Refer to the attached figure |
| Pure Tone (2V Sine Wave) | Must be normal |
| Sound Pressure (0.5W at 0.1m distance, sine wave) | 87±3dB at 1K, 1.6K, 2K, 3.2K Hz average |
| Distortion | Max.5% (0.5W/2.2KHz) |
| Operating Temperature | -40...+85℃ |
| Storage Temperature | -40...+105℃ |
| Weight | -40...+105℃ |
Features:
● High temperature resistant
● Ultra-thin
● Surface mount speaker
Description
The SMS1515-08H04 LF is an offer of an SMD speaker, specially designed for modern electronic products where require stable acoustic output, tiny size and long-term stability. Built on the platform of advanced ultra-thin architecture and structure, this micro SMD speaker features clear sound with good balancing performances and very small board space, and is ideal for high-density layout and portability solutions when the level of portability is at the forefront of the industry.
The speaker tolerates higher reflow temperature as well as aggressive working conditions ensuring reliable operation both during the assembly process and throughout the active lifetime of the product. Its optimized carbon-reinforced structure and heat-resistant materials make it have great durability, which is the first choice of some demand products. With 15mm form factor, the SMS1515-08H04 LF provides efficient sound output and smooth frequency response in a small geometry. The device fits perfectly in automatic solder through-the-line (SMT) processes and can provide consistency of solderability and shortening of assembly time. This makes it an excellent option for applications that require space, performance and production efficiency to coexist.
From looking for a smd speaker 15mm, to a low profile audio component, optimized PCB design choice, or even or even robust solution capable of withstanding high temperature workflows the SMS1515-08H04 LF is a dependable and performance driven answer.
