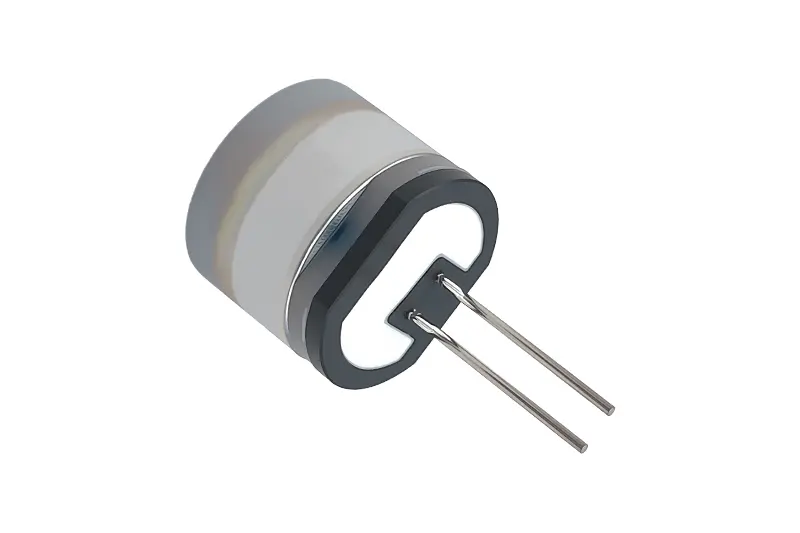

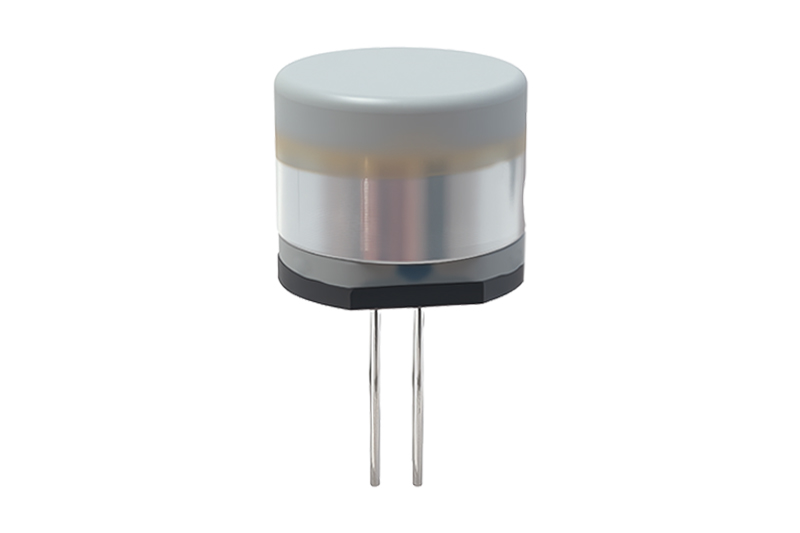

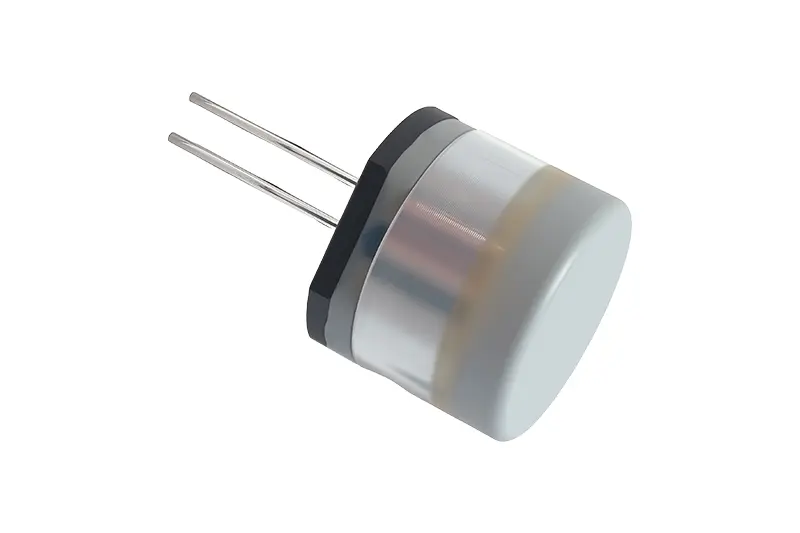

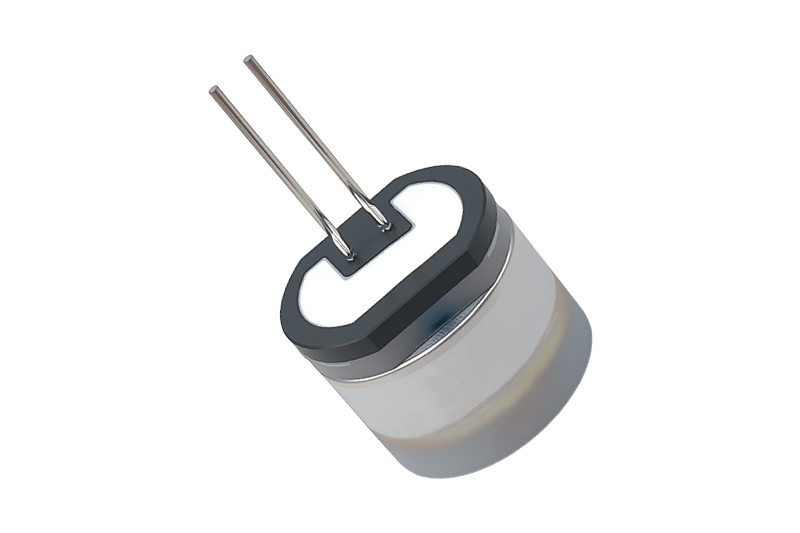

BESTAR Closed Type Pin Ultrasonic Sensor Waterproof BPU1458IFAH12D

Product Number: BPU1458IFAH12D
Features:
● Pin-type
● Waterproof
● Compact and lightweight
● High sensitivity
● Low power consumption
● High reliability

  • Product Number BPU1458IFAH12D
  • Product Features Pin-type
  • Waterproof
  • Compact and lightweight
  • High sensitivity
  • Low power consumption
  • High reliability

Size Ø14*12 (mm)
Frequency 58±1K Hz
Sensitivity ≥200μs (Φ75 mm*1m PVC tube at 150cm)
Ring Time 1.0-1.4ms
Capacitance 1900±10% pFat 1K Hz
Directivity X=110±10° Y=50±5°
Allowable Input Voltage 160Vp-p
Detectable Range 0.3...3m
Weight ≈2.7g
Operating Temperature -40...+85℃
Storage Temperature -40...+90℃
Noise ≤300mV (Within the 0ms--20ms)
Housing Material Aluminum
Coating Color Grey
Coating Thichness 20±5μm

Features:

● Pin-type

● Waterproof

● Compact and lightweight

● High sensitivity

● Low power consumption

● High reliability

Description

The closed-type pin ultrasonic sensor is a ultrasonic sensor module offered based on high-level detectivity technology to provide quality distance reading and presence presence objecting. The closed design of its ultrasonic sensor design makes it very durable and stable in operation despite being in the dusty and humid environment or slightly vibrating backgrounds and thus is a great product to be used by both consumers and industry personnel. This ultrasonic distance sensor has a slim and lightweight fabric, thus can be integrated to numerous devices with easy tolerance, yet it occupies less space.
This high sensitivity ultrasonic sensor is engineered to industrial automation, smart home, robotics, automotive electronics, and implemented in smart monitoring and has constant accuracy, strong signal output and reliable performance. It has made it an idea of choice in next-generation designs in addition to other factors such as low power consumption, high reliability and flexibility in integration. The closed pin ultrasonic sensor assists the developers by enabling the production of smarter, safer and efficient sensing system in various environments by combining the energy efficiency, precision measure and durability of the sensor.

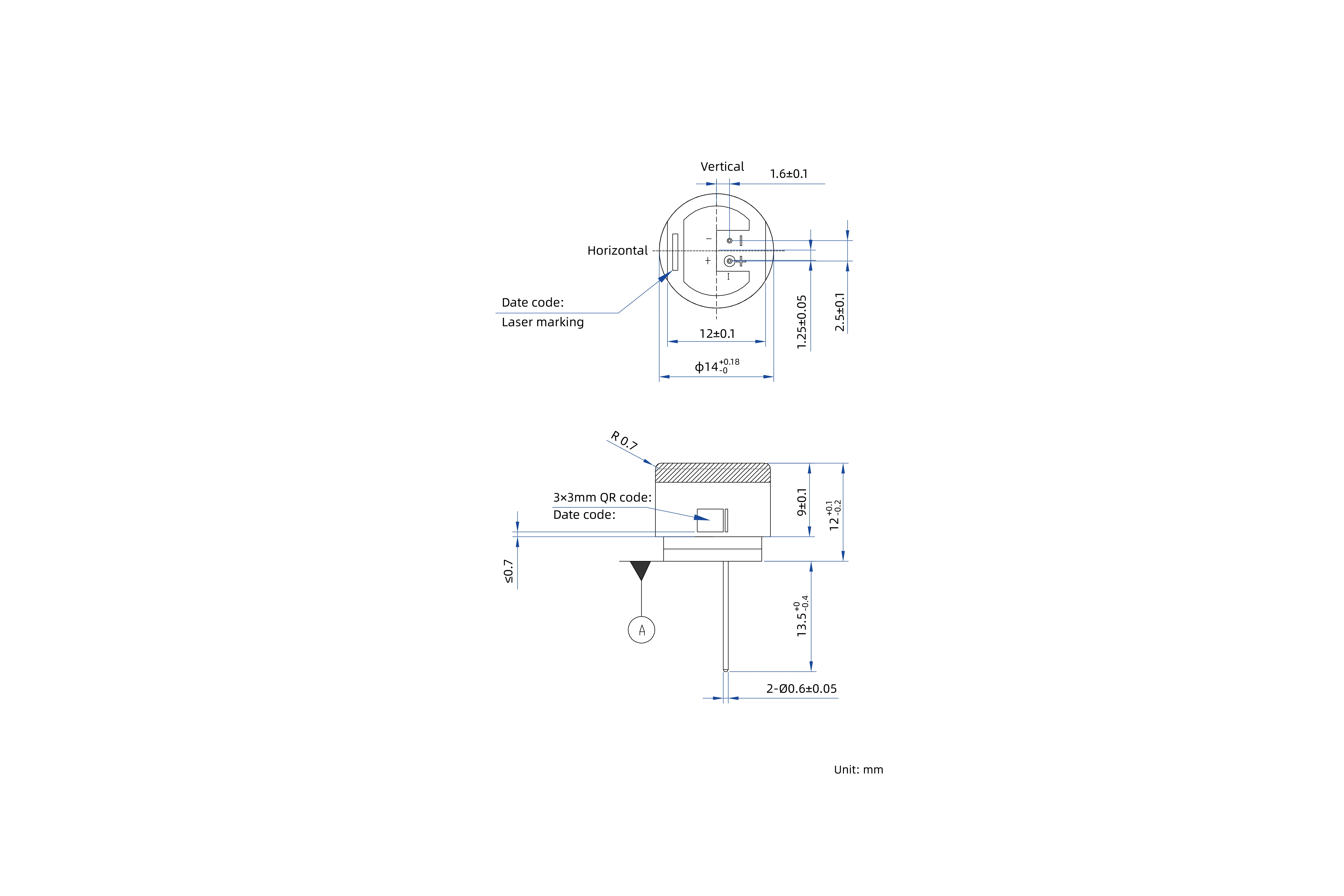

ultrasonic-sensor-D

application area
