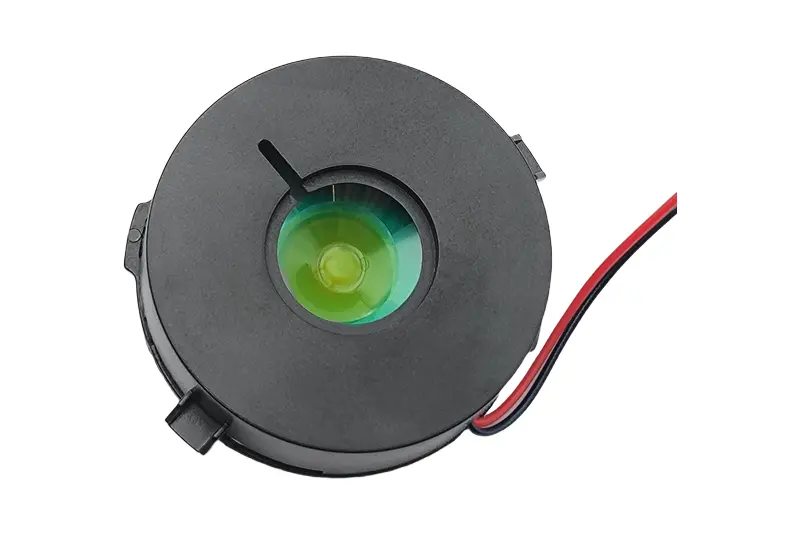

BESTAR Piezo Electric Buzzer for Alarm Stytems BPT4512H18.4-05

Product Number: BPT4512H18.4-05

Features:
● Low power consumption
● High quality sound

Product Number BPT4512H18.4-05
Product Features Low power consumption
High quality sound

parameter

Features/Description

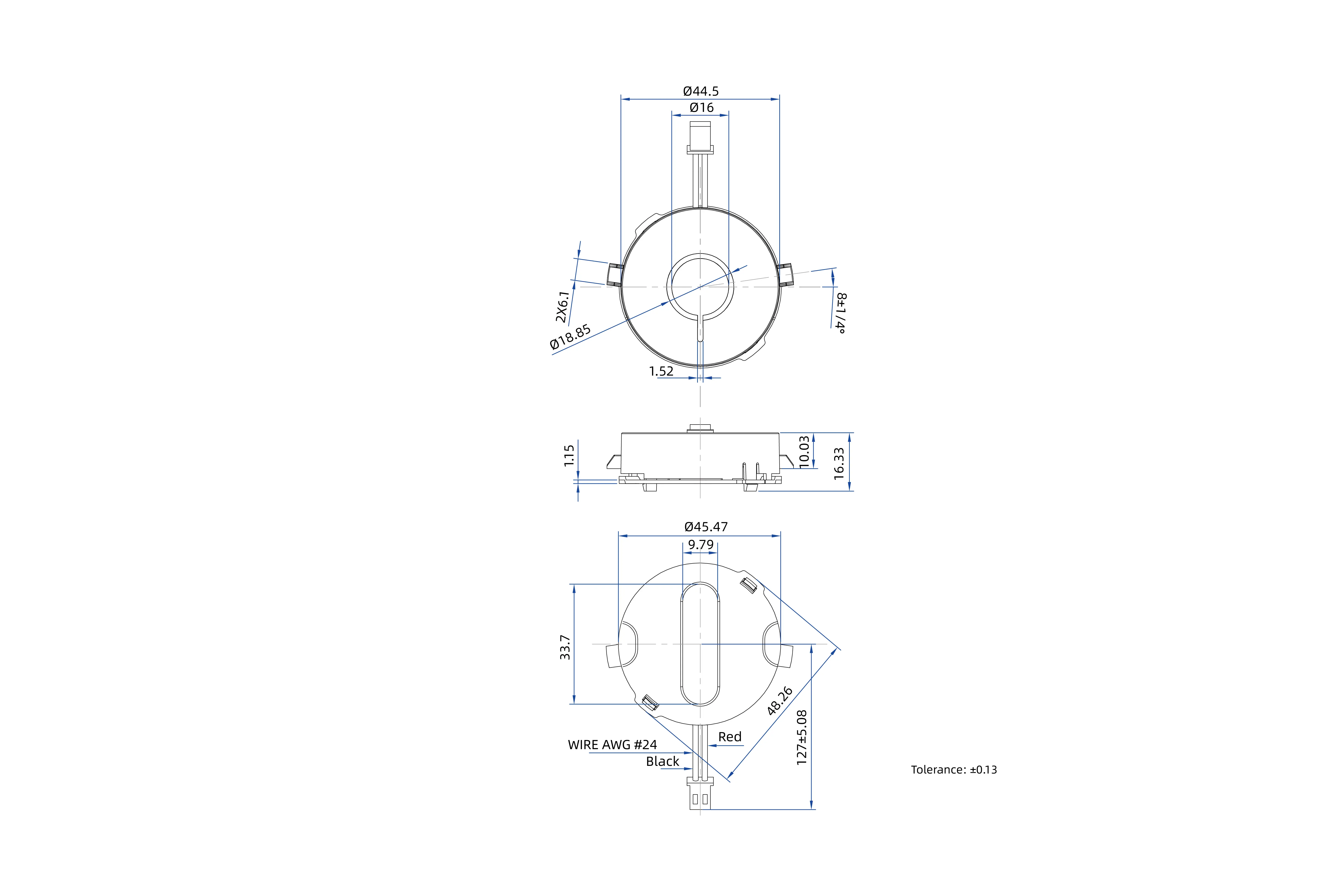

Product dimension diagram

Item	Specification
Rated Voltage	12Vp-p
Min sound pressure level	≥102dB (12Vp-p 3KHz 30cm)
Static Capacitance	150±30%nF at 120Hz
Max input voltage	60Vp-p Square Wave
Operating Temperature	-40...+70℃
Storage Temperature	-40...+90℃
Material	PC IR1900

Features:

● Low power consumption

● High quality sound

Description

Piezo Electric Buzzer is a much dependable device used as an audio signaling product, which is intended to be modified within an alarm system, security systems, and other highly alert patterns. This buzzer delivers high-quality sound and sustained tones using minimal power consumption and is a best fit in battery-powered applications and long-term applications in safety critical systems using advanced piezoelectric technology.

A Piezoelectric Buzzer is activated by passing electrical signal to a piezoelectric element that in turn vibrates to produce sound waves. In the case of alarm systems, this will help to make warning signals audible and reliable even in hostile and noisy environments.

We have a wide range of applications of our Piezo Electric Buzzer outside the alarm systems. It is common in consumer electronics, automotive dashboard, household appliance applications and control panels. But where speed is needed, as in security and safety applications, the fast response time and high-durability of the component make it an essential component. Be it constant alarm noise, periodical beeping, or connection to a more sophisticated system, a piezoelectric buzzer is the best-performing buzzer that you can rely on.

The appropriate piezoelectric buzzer circuit choice produces the maximum output volume and energy efficiency and the piezoelectric buzzer circuit diagram guide during the design-build ensures proper installation and operation. Our Piezo Electric Buzzer provides manufacturers, engineers and OEMs with a low cost, reliable sound signaling in alarm systems by integrating technical reliability with ease of use.
