How to Choose the Right PCB Mount Buzzer for Your Project?
Choosing the right PCB mount buzzer is critical for project success. In electronic design, ensuring the optimal sound output and size can significantly impact user experience. According to a recent industry report by MarketsandMarkets, the global market for electronic buzzers and alarms is projected to reach $1.5 billion by 2026, highlighting their importance in various applications.
Expert Marc O’Brien, a well-known figure in the buzzer industry, once stated, "Selecting the correct PCB mount buzzer can enhance not only functionality but also overall product appeal." This emphasizes the need to understand specifications like resonance frequency and sound pressure level.
While many may overlook the intricacies of selecting a PCB mount buzzer, it can lead to trial and error. The balance of features and costs is often challenging. Not all buzzers are suitable for every project, so knowing the requirements is vital. A poorly chosen buzzer can result in disappointing outcomes and dissatisfied users, making careful consideration paramount.
Understanding the Basics of PCB Mount Buzzers
When considering PCB mount buzzers, understanding their basics is essential. These components convert electrical energy into audio signals, providing sound alerts in various devices. According to a recent report by MarketsandMarkets, the global market for piezoelectric buzzers, a common type of PCB mount buzzer, is expected to grow significantly, reaching over $3 billion by 2025. This growth indicates their crucial role in electronics.
It's vital to consider several specifications when selecting a buzzer. The operating voltage and current ratings directly impact performance. Typical ranges are 3V to 24V, depending on the application. Furthermore, the sound pressure level (SPL) indicates volume output, usually measured in decibels. An SPL of 85dB at 10cm is common for effective alerts. However, it's crucial to reflect on whether higher SPL always translates to better performance. In some cases, a louder buzzer might not fit the design's acoustic requirements.
Moreover, efficiency is another crucial factor to evaluate. The efficiency ratings indicate how effectively buzzers convert electrical input into sound. Some models may incur higher power losses, impacting battery-powered applications. Insights from electronic design reports highlight that there's a balance between sound quality and energy consumption. Engineers must weigh these factors carefully to align design goals with user experience.
Types of PCB Mount Buzzers and Their Applications

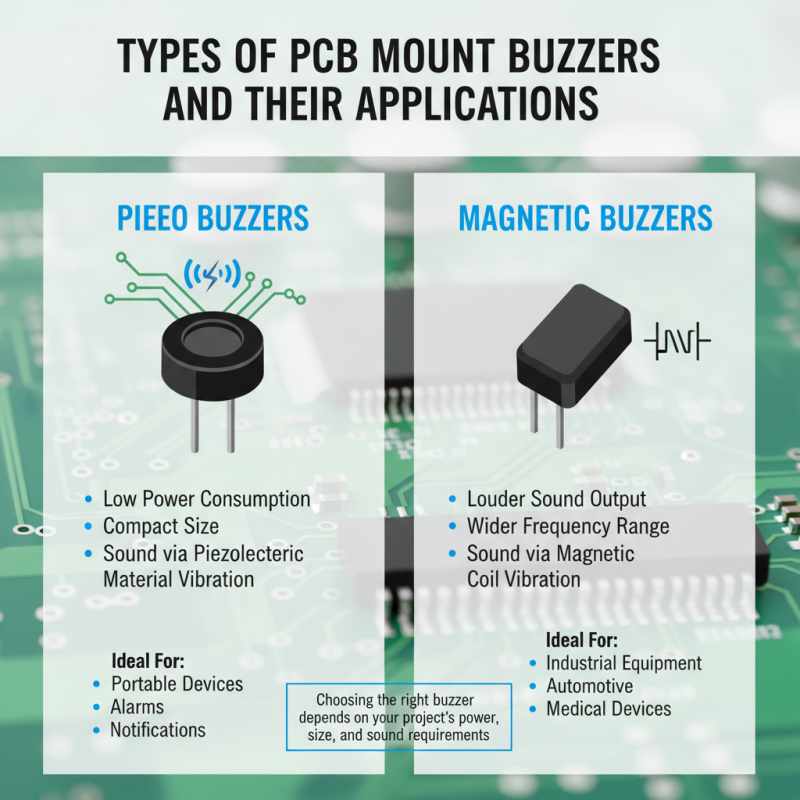

When selecting a PCB mount buzzer for your project, it's crucial to understand the different types and their applications. Generally, buzzers can be classified into two main categories: piezo and magnetic. Piezo buzzers are popular for their low power consumption and compact size. They produce sound through the vibration of a piezoelectric material. These are ideal for portable devices, alarms, and notifications.
On the other hand, magnetic buzzers generate sound using an electromagnetic coil. They typically provide a fuller sound but may consume more power. These buzzers are suitable for larger applications, like household appliances and automotive systems. It's important to weigh the power requirements and sound quality needed for your specific project before making a decision.
When monitoring performance, users often overlook the impact of frequency. Higher frequencies can lead to clearer sound but may not suit all applications. Testing different options can reveal unexpected insights. Ultimately, choosing the right buzzer involves balancing various factors, including size, sound, and power needs. This reflection may guide your project toward success without compromising core functionalities.
Key Specifications to Consider When Selecting a Buzzer
When selecting a PCB mount buzzer, several key specifications should be considered to ensure it fits your project's needs. The first important factor is the operating voltage. Most buzzers work within a specific voltage range. A mismatch can affect performance. It's crucial to choose a buzzer that matches your circuit specifications.
Another critical specification is sound output level, measured in decibels (dB). A louder buzzer ensures that alerts or signals are heard. However, it may not be necessary for low-noise environments. Be mindful of how the sound fits into the overall design. Consider the space and orientation, as these can impact the effectiveness of sound projection.
Lastly, frequency response matters. Buzzers produce sound at specific frequencies, and this affects how the sound is perceived. A higher frequency may sound sharper, while lower frequencies can be more pleasant. Assess the auditory experience you intend to create, as this can significantly influence user interaction. Balancing these specifications can lead to better functionality and user satisfaction.
How to Choose the Right PCB Mount Buzzer for Your Project? - Key Specifications to Consider When Selecting a Buzzer
| Specification |
Description |
Example Value |
| Operating Voltage |
The voltage required for the buzzer to operate effectively. |
3V - 24V |
| Sound Level |
Measured in decibels (dB), indicating how loud the buzzer sounds. |
85 dB @ 10cm |
| Frequency |
The pitch of the sound produced, measured in Hertz (Hz). |
3kHz - 4kHz |
| Type |
Indicates whether the buzzer is active or passive. |
Active |
| Size |
Dimensions of the buzzer, typically specified by diameter and height. |
12mm x 5mm |
| Connection Type |
How the buzzer connects to the PCB, such as through leads or pads. |
Wire Leads |
| Temperature Range |
The range of temperatures in which the buzzer can operate reliably. |
-20°C to +70°C |
How to Integrate a Buzzer into Your PCB Design
Integrating a buzzer into your PCB design involves several critical considerations. Buzzer specifications such as size, sound level, and frequency must align with your project's requirements. For instance, a standard ultrasonic buzzer operates around 40 kHz, which is often suitable for alarms and notifications. However, the choice of a piezoelectric versus an electromagnetic buzzer can significantly impact the design. Piezo buzzers are compact and energy-efficient, making them ideal for battery-powered projects.
When positioning the buzzer on the PCB, pay attention to sound propagation. Proper placement can enhance acoustic performance. Ideally, position the buzzer at the edge of the board to ensure optimal sound output. Poor placement might lead to muffled sounds or reduced audibility, affecting user interaction. A well-conducted study by the Electronic Design Automation Association highlighted that improper layout can reduce sound output by up to 30%.
Connecting the buzzer properly is equally essential. Incorrect pin configurations may lead to audio distortion or even failure to operate. Ensure that the buzzer is compatible with your voltage levels. This compatibility reduces the chances of damage and enhances reliability. It's vital to consult detailed datasheets during the integration process to avoid common pitfalls. Adopting these best practices can lead to a more successful design, but always be prepared for iterations and testing to refine your project.
Common Mistakes to Avoid When Choosing a PCB Mount Buzzer
Choosing the right PCB mount buzzer can be challenging. Many often overlook key aspects. One common mistake is ignoring the voltage requirements. A mismatch can lead to inadequate sound output or even failure. Always check the voltage ratings before finalizing your choice.
Another frequent error is not considering the sound level needed for your application. Buzzers come in various decibel levels. A buzz that is too soft for your environment will be ineffective. On the other hand, an overly loud buzzer can be disruptive. Find a balance that fits your specific project demands.
Many people forget about the size and mounting options. A buzzer that doesn’t fit well on your PCB can result in frustration. Ensure the dimensions align with your design. Sometimes, the ideal part is overlooked because it doesn’t match the initial layout. Take a moment to reflect on these aspects. The right choice goes beyond specifications; it’s about fitting your overall project framework.
